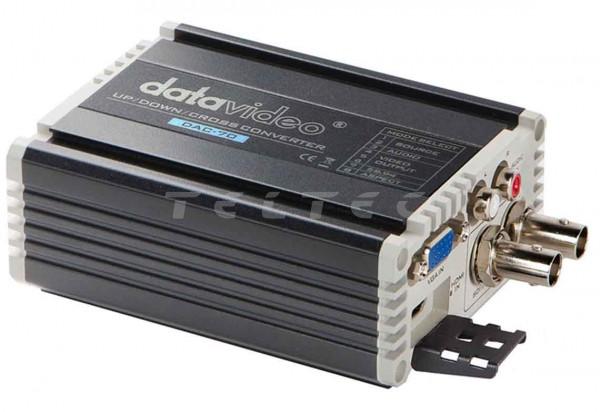

Datavideo DAC-70

Datavideo DAC-70 Up/Down/Cross-Konverter wandelt Videosignale von VGA, HDMI, SDI mit Audio in 3G/HD/SD SDI.

Hauptmerkmale

• 3G/HD/SD Up/Down/Cross convert
• Audio/HDMI/SDI/VGA input
• 3G/HD/SD SDI and HDMI output
• Rack-Mount möglich mit optionalem RMK-2 2RU
• DC 12V, 3,6 Watt

Technische Daten

Video Inputs (VGA x 1, HDMI x 1 , HD/SD-SDI x 1)

• SDI (YUV): 1080p60/59.94/50, 1080p30/29.97/25/24/23.98, 1080psf30/29.97/25/24/23.98, 1080i60/59.94/50, 720p60/59.94/50, 525i, 625i
• HDMI (YUV / RGB): 1080p60/59.94/50, 1080p30/29.97/25/24/23.98, 1080psf30/29.97/25/24/23.98, 1080i60/59.94/50, 720p60/59.94/50, 480p, 576p, 480i, 576i, 800x600@60Hz, 1024x768@60Hz, 1280x1024@60Hz, 1366x768@60Hz, 1400x1050@60Hz, 1600x1200@60Hz
• VGA (RGB): 800x600@60Hz, 1024x768@60Hz, 1280x1024@60Hz, 1366x768@60Hz, 1400x1050@60Hz, 1600x1200@60Hz, 1280x720@60Hz, 1920x1080@60Hz

Video Outputs (SDI x 2, HDMI x 1, SDI Loop thru BNC (front panel))

• SDI / HDMI : 1080p60/59.94/50, 1080p30/29.97/25/24/23.98, 1080i60/59.94/50, 720p60/59.94/50, 525i, 625i

Audio Format (Input)

• Analog Audio L/R : stereo audio
• SDI / HDMI embedded audio up to 8CH, 48KHz, PCM audio
• HDMI embedded audio up to 8CH, 44.1/48/96KHz, PCM audio

Audio Format (Output)

• SDI embedded audio up to 8CH, 48KHz, PCM audio
• HDMI embedded audio up to 8CH, 48KHz, PCM audio
